Piezo Direct: Your Guide to Piezoelectric Actuators

Piezoelectric actuators are a powerful and versatile class of electromechanical devices that convert electrical energy into precise mechanical motion. They leverage the inverse piezoelectric effect, where an applied voltage causes a piezoelectric material to physically deform. This ability to translate electrical signals into highly controlled movements makes piezo actuators a valuable asset in a wide range of industries.

Understanding the Power of Piezoelectric Actuation

At their core, piezo actuators function by utilizing the unique properties of piezoelectric materials. These specialized materials exhibit a natural response known as the piezoelectric effect. When mechanical stress is applied to a piezoelectric material, it generates a corresponding voltage. Conversely, the inverse piezoelectric effect occurs when an electrical field is applied to the material, causing it to expand or contract physically.

Piezoelectric actuators exploit this inverse effect to achieve precise and controlled movements. By applying a varying electrical signal, the actuator can cause the piezoelectric material to undergo minute deformations, translating the electrical input into a specific physical displacement. This level of control allows for incredibly accurate positioning, often down to the micrometer range.

Advantages of Piezoelectric Actuators

Piezoelectric actuators offer several distinct advantages over traditional actuation methods:

  • High Precision:  As mentioned previously, piezo actuators excel at delivering exceptionally precise and controlled movementsThis makes them ideal for applications demanding immaculate positioning, such as in high-precision machinery, medical devices, and optical alignment systems.
  • Efficiency: Piezo actuators boast a highly efficient operation, converting a significant portion of the electrical energy input into mechanical motion with minimal energy lossThis translates to lower power consumption and reduced operating costs.
  • Simplicity of Design: The design of piezo actuators is inherently simple, featuring very few moving parts. This attribute contributes to their reliability, durability, and low maintenance requirementsUnlike many other actuators, piezos typically do not require lubrication, further reducing maintenance needs.
  • Fast Response Times: Piezoelectric materials possess exceptional responsiveness, allowing piezo actuators to achieve rapid movements and high acceleration ratesThis makes them well-suited for applications requiring dynamic actuation and fast response times.

Applications for Piezoelectric Actuators

The versatility and unique capabilities of piezo actuators have led to their far-reaching adoption across a large array of industries. Some of the most common applications for piezo actuators include:

  • Medical Devices: Piezo actuators play a crucial role in various medical devices, including injectors, haptic feedback systems, and surgical instruments, offering precise control and minimal invasiveness.
  • Industrial Automation: Piezoelectric actuators are employed in industrial automation processes for accurate positioning of robots, control valves, and material handling equipment.
  • Aerospace and Defense: The high precision and fast response times of piezo actuators make them valuable in aerospace applications like fuel injectors, active noise cancellation systems, and optical alignment within telescopes.
  • Scientific Instrumentation: Piezo actuators are crucial components in scientific instruments demanding high-resolution movement, such as atomic force microscopes (AFM) and scanning tunneling microscopes (STM).
  • Consumer Electronics: The use of piezo actuators is expanding in consumer electronics, with applications in autofocus mechanisms for cameras, vibration reduction systems in smartphones, and inkjet printers.

By understanding the principles behind piezoelectricity and the unique advantages of piezo actuators, you can unlock the potential for precise and efficient motion control in your specific application. For more information on how Piezo Direct can assist you with your piezo actuator requirements, feel free to contact us today!

Piezo Strip
There are multiple types of piezo actuators, including multilayer piezo stack actuators, piezo strips, piezoelectric disc actuators, piezo tube actuators.

Piezo Direct: Your Trusted Piezoelectric Actuator Manufacturer

Piezo Direct is a leading force in the world of piezo actuators, dedicated to providing high-performance and dependable piezoelectric devices. We leverage cutting-edge technology and rigorous quality control procedures throughout every stage of the manufacturing process to ensure our actuators consistently meet the highest standards.

Uncompromising Quality from Start to Finish

Our journey towards exceptional piezo actuators begins with the meticulous selection of premium-grade piezoelectric materials. We prioritize materials like lead zirconate titanate (PZT), renowned for their outstanding performance and longevity. These materials are sourced from trusted suppliers to guarantee consistent and reliable actuator behavior across the board.

Once the materials are secured, we utilize advanced fabrication techniques to shape them into the precise actuator designs required. This involves employing specialized machinery and equipment to achieve unmatched precision during intricate cutting, dicing, and shaping processes, ensuring the exact geometries and dimensions are achieved.

Building a Foundation for Excellence: Assembly, Bonding, and Testing

The next stage involves the meticulous assembly and bonding of the individual piezoelectric components to create the complete piezo actuator. Piezo Direct utilizes state-of-the-art bonding techniques, guaranteeing a robust and reliable connection between the piezoelectric layers and electrodes. This ensures optimal electrical contact and efficient conversion of electrical energy into the desired mechanical motion.

We understand the importance of unwavering quality. To this end, every piezo actuator undergoes rigorous testing and characterization. Our comprehensive testing protocols encompass electrical testing, mechanical testing, and environmental testing to meticulously assess the performance, reliability, and durability of each actuator. Only actuators that surpass our stringent quality standards are approved for further processing and shipment.

Collaborative Customization: Tailoring Solutions to Your Needs

At Piezo Direct, we recognize the value of customization. We prioritize understanding your specific application requirements and work collaboratively to deliver tailored solutions. This may involve customizing actuator dimensions, electrical characteristics, and mounting options to ensure flawless integration within your systems.

By prioritizing unwavering quality, implementing precision manufacturing processes, and fostering a customer-centric approach, Piezo Direct has established itself as a leading provider of piezo actuators. Our expertise and dedication contribute to advancements in various industries that rely on piezo actuation, propelling the development of cutting-edge technologies.

“It’s been a wonderful experience working with these guys so far, every step of the process has been very smooth. Awaiting my engineering samples now, should be here in a few weeks.” – Kevin Lee

Five Star Review

Please give us an opportunity to show you what we can do. The entire process is fast and efficient. Call us today, in California, at 650-375-7003.

Detailed Mechanics

Detailed Mechanics of Piezo Actuators

The inverse piezoelectric effect occurs when an electrical charge generates mechanical energy. When an electrical voltage is applied to a piezoelectric actuator, the piezo actuator will deform and generate some kind of precisely controlled physical displacement. The resulting displacement can be used to activate switches or alarms, create sound, release fluid, auto-break or auto-focus, and much more. Low stroke or high stroke can be achieved depending on the shape and construction of the piezo actuator. The higher the mechanical stress on the piezo actuator, the high voltage produced. If one end of the piezo actuator is fixed, the other end bends to cause deflection. If both ends of the piezo actuator are fixed, the center deforms the most to generate displacement.
piezo tube actuators
Piezo actuators are able to generate physical displacement as a result of an applied voltage.
Piezoelectric actuators can either be constructed as a stack, bimorph, or unimorph, depending on the application and desired results. Stack piezo actuators generate low stroke, high blocking force, and high load capabilities making them extremely suitable for high precision applications given their ability to produce linear movement in small and precise amounts. Stack piezoelectric actuators can be made as either discrete stacks, where the components are fired separately and connected later via adhesive, or monolithic stacks where they are co-fired and bound by subjecting them to intense heat and pressure, or sintering. Bimorph and unimorph piezo actuators are constructed with layers of active piezoelectric material that bend and contract when a voltage is applied. Bimorph piezo actuators have two active piezo layers and unimorph piezo actuators have one active piezo layer often attached to a passive substrate layer. The electrical current causes one layer to contract and the other to expand, creating a bending motion. The resulting deflection generates more stroke and less blocking force than stack piezo actuators.

Advantages and Disadvantages

Piezo actuators are extremely reliable and versatile. They are small, flexible, can be manufactured into any shape, and have no moving parts that require lubrication. Piezo actuators have very low energy consumption, high force generation and load capabilities, and can operate in vacuum and cryogenic environments. They have very fast response times and can be made to operate at high voltages. Piezo actuators may need to be mechanically preloaded or amplified if used as a driver depending on the application.

Advantages of Piezo Actuators:

  1. Precise Movement: Piezo actuators offer exceptional precision in movement, allowing for accurate positioning and control. They can achieve sub-micrometer and even nanometer-level displacements, making them ideal for applications that require high precision, such as microscopy, nanomanipulation, and optics.
  2. Fast Response Time: Piezo actuators have an incredibly fast response time, often in the microsecond range. They can rapidly change their shape and position, enabling them to quickly adapt to dynamic requirements and perform high-speed operations. This attribute is advantageous in applications like active vibration control, scanning systems, and fast switching devices.
  3. High Force Output: Despite their small size, piezo actuators can generate significant force output. They can exert forces ranging from a few newtons to hundreds of newtons, depending on the design and configuration. This characteristic makes them suitable for applications that require both precision and high force, such as precision machining, valve control, and robotics.
  4. Wide Frequency Range: Piezo actuators exhibit a wide frequency range, allowing for precise control across different frequency bands. They can operate from DC (direct current) to several kilohertz or even megahertz frequencies. This versatility makes them valuable in applications such as ultrasonic cleaning, ultrasonic machining, and high-frequency sonar systems.
  5. Compact and Lightweight: Piezo actuators are compact and lightweight, making them easy to integrate into various systems and devices. Their small size and high power density contribute to space-saving designs and enable the development of portable and miniaturized devices. This advantage is particularly relevant in fields like aerospace, medical devices, and consumer electronics.

Disadvantages of Piezo Actuators:

  1. Limited Stroke Length: Piezo actuators typically have a limited stroke length compared to other actuation technologies. While they excel in achieving small displacements, they may not be suitable for applications that require long linear or angular movements. External mechanisms or hybrid actuation systems may be needed to overcome this limitation.
  2. Voltage Requirements: Piezo actuators require high voltages for operation. The voltage required to drive a piezo actuator can range from tens to hundreds of volts, depending on the specific actuator and application. This high voltage demand necessitates appropriate power supplies and voltage amplifiers, which can add complexity and cost to the system.
  3. Temperature Sensitivity: Piezo actuators can be sensitive to temperature changes. Extreme temperature variations can affect their performance and cause variations in their characteristics, such as displacement and resonant frequency. Temperature compensation techniques or environmental control may be necessary to mitigate these effects.
  4. Hysteresis: Piezo actuators may exhibit hysteresis, meaning that the output motion may not precisely correspond to the input voltage or control signal. This non-linear behavior can introduce errors and require additional compensation techniques for achieving accurate positioning.
  5. Fragility: Piezo actuators are relatively fragile compared to other actuation technologies. They are susceptible to mechanical stress and can be damaged if subjected to excessive loads or impacts. Proper handling and protective measures are crucial to ensure their longevity and reliability.

While piezo actuators offer numerous advantages, it is important to consider these disadvantages and evaluate their impact on the specific application requirements before incorporating them into a system.

Piezo stack actuators can be custom manufactured in various shapes and sizes according to the intended application.
Piezo actuators can be custom manufactured in various shapes and sizes according to the intended application.


  • Sound generation and amplification
  • Musical pickups
  • Household commercial items
  • Alarms (microwaves, clocks, etc.)
  • 3D and inkjet printers
  • Fine machinery
  • Fuel injectors
  • Valve and pump control
  • Ultrasound equipment
  • Microdosing and nanodosing
Piezo actuators are widely used for precision movement across many industries.
Piezo actuators are widely used for precision movement across many industries.

Applications of Piezo Actuators

Piezo actuators are a valuable and versatile element with limitless capabilities across all industries, such as commercial, industrial, automotive, aviation, aerospace, and electronic. In common household items, piezo actuators are responsible for igniting lighters, sounding alarms, and amplifying sound in speakers and microphones. Coupling the displacement’s power with rapid vibration makes for a clear sound with potent sound pressure. Sound-generating buzzers, alarms, and buttons implement piezo actuators to bend or deform at a signal and create a sound. This can be seen in timers, clocks, microwaves, car keys, PIN pads, and alarms and buzzers. Larger machinery such as 3D printers, inkjet printers, Braille machines, and weaving machines all utilize piezo actuators for fine movement and precise adjustments. In printers, piezo actuators are used to control the dispensing nozzle, releasing the precise amount of ink needed to create the print received through an electrical signal.

In the automotive industry, piezo actuators are found in fuel injectors, valve and pump control, and other auto functions, such as automatic breaking. Piezo actuators respond to electrical signals in the car’s computer and make mechanical and physical adjustments within the vehicle instantly.

Piezoceramic actuators are also excellent for high precision nano movement and dosing. In medical applications, piezoelectric tube actuators are employed in microdosing machines and ultrasound equipment. In some minimally invasive procedures, piezo actuators are implemented into catheters generate ultrasound waves, which increase the permeability of the blood vessel walls and make it easier for medication to penetrate.

Piezo actuators are a valuable and versatile element with limitless capabilities across all industries, such as commercial, industrial, automotive, aviation, aerospace, and electronic.


Multilayer Stack Piezo Actuators

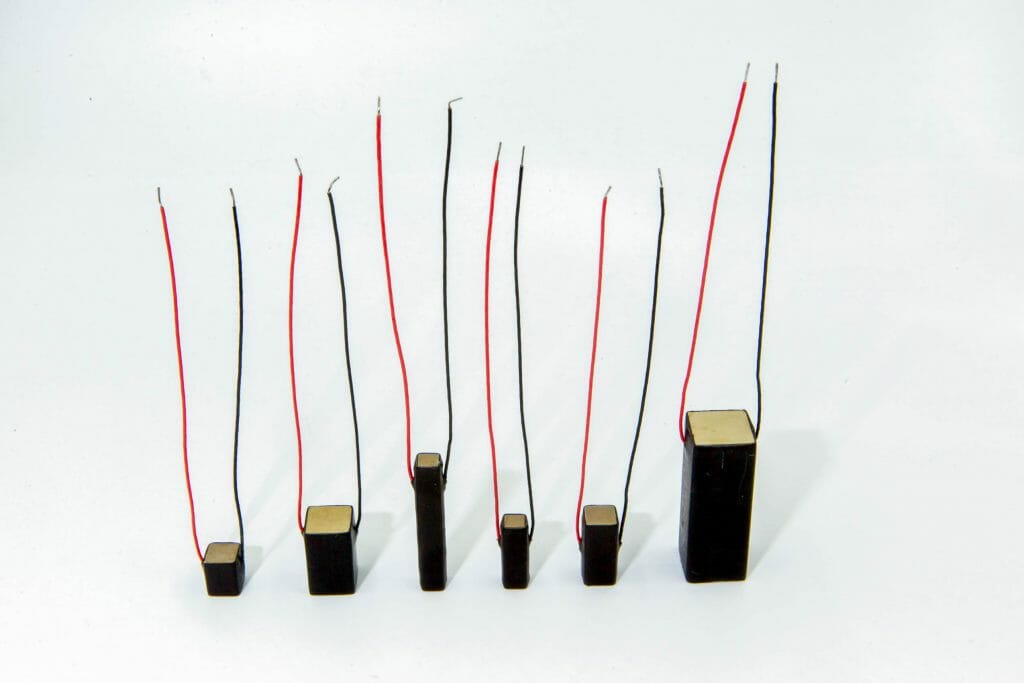

Multilayer stack piezo actuators consist of stacks of piezo elements that expand when an electrical charge is applied. Longitudinal and shear displacement can be achieved with stack piezoelectric actuators. Multilayer stacks are commonly utilized for precision machinery and control in industrial, medical, aerospace, and automotive industries. Learn more about piezo multilayer actuators here.

Disc Piezo Actuators

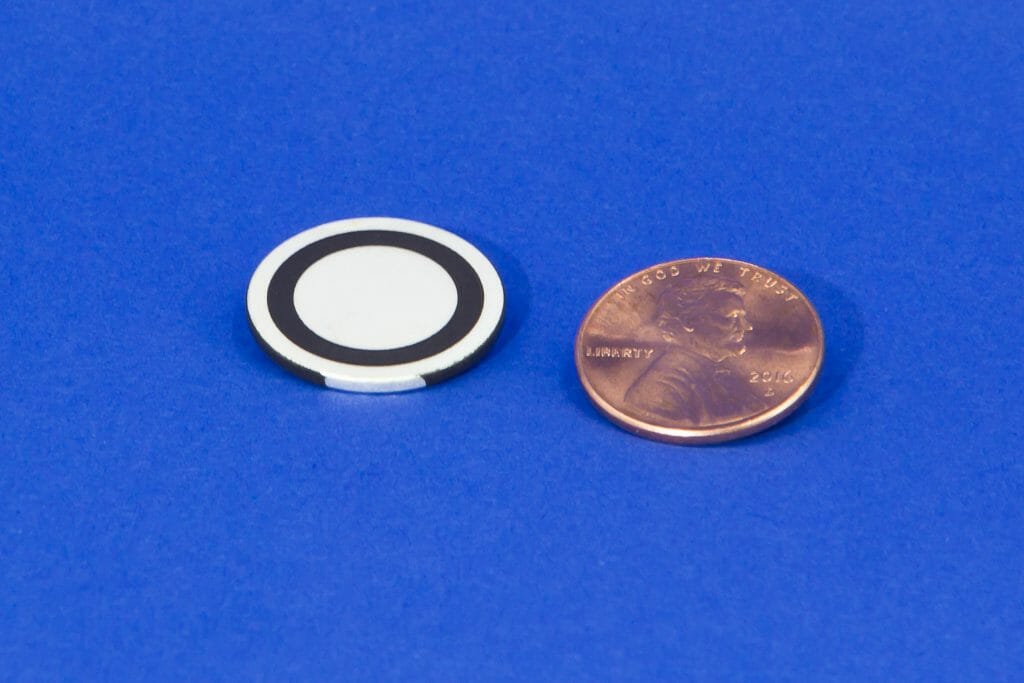

Piezoelectric actuators in a disc shape are circular piezo elements often found in automotive functions, sound production and amplification, liquid and fluid level measurement, and ultrasonic applications. As piezo actuators, discs are utilized in the automotive, industrial, commercial, and ultrasonic applications to detect changes and perform adjustments. Learn more about piezo disc actuators here.

Strip Piezo Actuators

Piezoelectric actuators in a strip shape are thin pieces of active piezoelectric material connected to a passive layer. Piezo strip bending actuators have either one active piezoelectric layer or two active piezoelectric layers that bend to create deflection. Strip piezo actuators are commonly utilized in valve and pump controls, accelerometers, sound production, touch switches/controls, and fine machinery. Learn more about strip piezo actuators here.

Ring Piezo Actuators

Piezoelectric actuators in a ring shape are often used in multilayer stack piezo actuators to produce linear movement. Ring piezo actuators are often found in ultrasonic applications, nanopositioning, microscopy, and precision machining. Learn more about piezo ring actuators here.

Tube Piezo Actuators

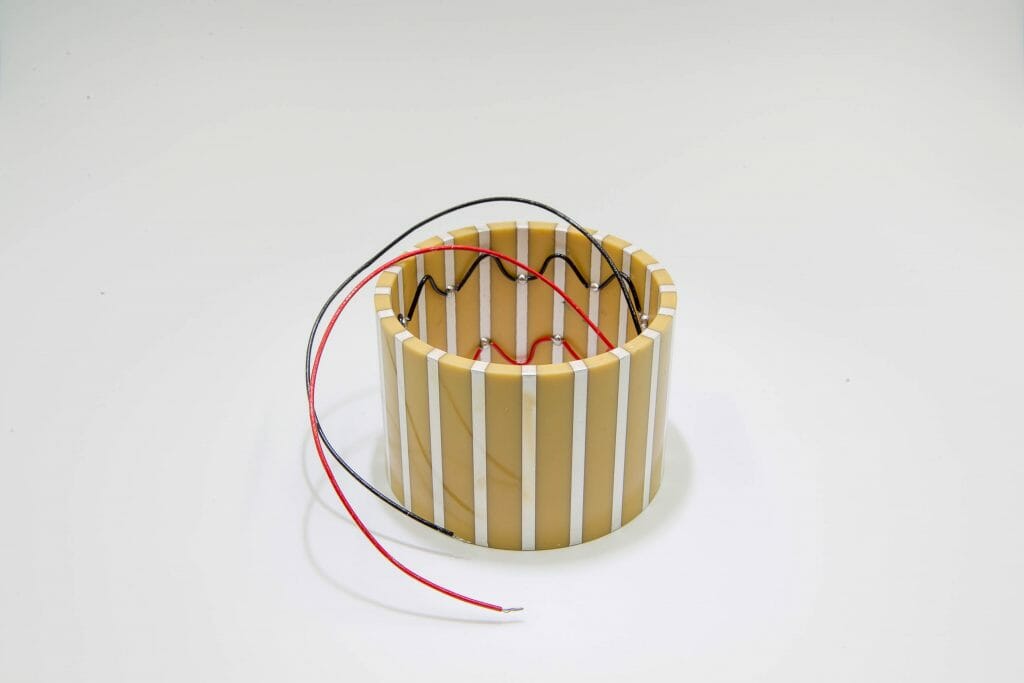

Piezoelectric actuators in a tube shape are also known as piezoelectric cylinders. Tube piezo actuators can generate axial displacement (changes in length) or radial displacement (changes in diameters). Tube piezoelectric actuators are often utilized for flow and level measurements and adjustments, scanning microscopy, and microdosing, commonly found in the industrial and commercial industries. Learn more about piezo tube transducers here.

Bimorph Piezo Actuators

Bimorph piezoelectric actuators consist of two active piezoelectric layers bonded to a passive metal substrate or bonded directly together. One piezoelectric layer contracts while the other piezoelectric layer expands when a mechanical or electrical input is received. This causes a bending motion that can either perform a desired task or generate a readable electrical output. Learn more about piezo bimorph transducers here.

Unimorph Piezo Actuators

Unimorph piezoelectric actuators consist of one active piezoelectric layer often bonded to a passive metal substrate. Unimorph actuators deform in a single direction when activated by an electrical input and translate it into a mechanical output.

Plate and Block Piezo Actuators

Piezoelectric actuators shaped as plates and blocks can be engineered into any shape. Plate piezo actuators are commonly used in multilayer stack actuators and block piezo actuators are often used in ultrasonic applications. A DC voltage will cause piezo plate actuators to deform while an AC voltage will cause it to vibrate. Piezo block actuators are used for high power generation and applications. Learn more about plate and block piezo actuators here.
