PD DB-16-110-1.6 C(A)

PD DB-16-110-1.6 C(A)

Model:PD DB-16-110-1.6 C(A)

PD DB-16-110-1.6 C(A)

49 in stock

$100.00

49 in stock

Qty
Questions?
Bulk Purchase

Product Information

Descriptions:

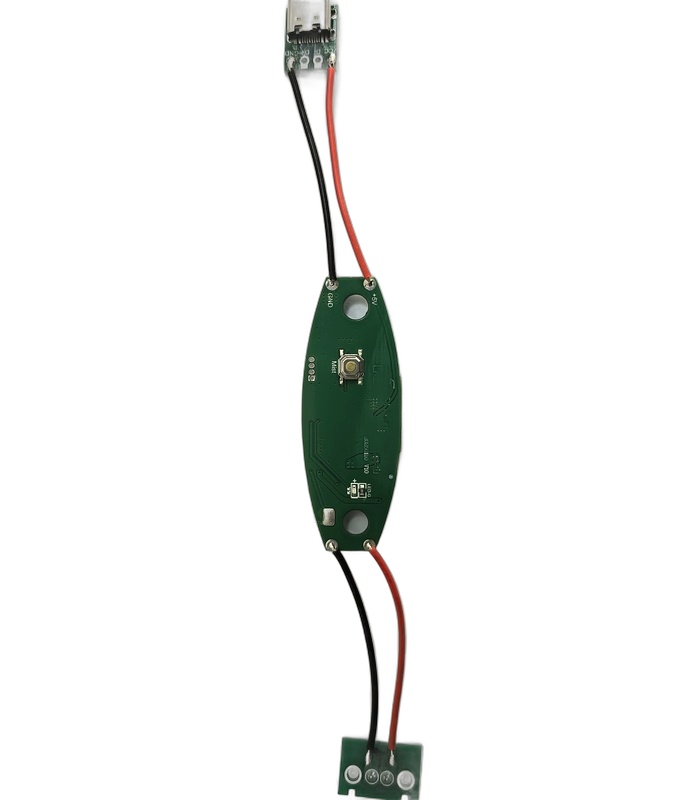

               Name of the part: 16mm Atomizer Driving Board
  Output power: 1.6w
Sweep Frequency Range: 100 – 110KHz
Input voltage: 5VDC
Dimensions 56mm x 20.7mm x 1mm



Operating Procedure

  1. Connect to atomizer and make sure there is water/fluid in the reservoir.
  2. Connect power supply through USB type C connector or Solder pad on PCB.
  3. The power required is 5VDC/1A.
  4. The driver board has 2 power levels: 0.65W and 1.6W, which can be switched via the button on the back of the board.
  5. Short press the button to switch modes in sequence: low output (0.65W) → high output (1.6W) → switch off.
  6. After power-on, it defaults to timed operation for 20 minutes and will stop automatically when the time is up.
  7. Press and hold the button while the device is off to enter the intermittent working mode: operate for 1.5s, pause for 0.5s, and repeat the cycle.

*The above are the default functions of the driver board. Please contact us if you need to modify or customize any functions.
